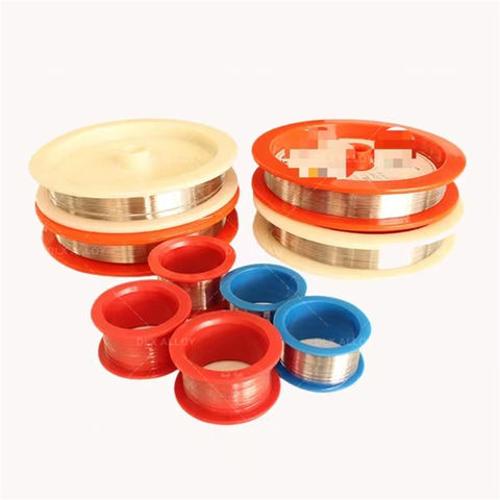

0.2mm 0.25mm 0.3mm 0.5mm Platinum-Rhodium Thermocouple Bare Wire Type S/B/R with competitive
| When a reference client for the 0 C, the thermocouple and the Tolerance level to allow deviations | |
| Thermocouple | |
| Grade | |
| Use temperature range(℃) | Allowable deviation |
| B | |
| II | |
| 600~1700 | ±0.25%t |
| III | |
| 600~800 | ±4 ℃ |
| 800~1700 | ±0.5%t |
| R | |
| I | |
| 0~1100 | ±1 ℃ |
| 1100~1600 | ±(1+(t-1100)×0.003) ℃ |
| II | |
| 0~600 | ±1.5 ℃ |
| 600~1600 | ±0.25%t |
| S | |
| II | |
| 0~1100 | ±1 ℃ |
| 1100~1600 | ±(1+(t-1100)×0.003) ℃ |
| II | |
| 0~600 | ±1.5 ℃ |
| 600~1600 | ±0.25%t |
