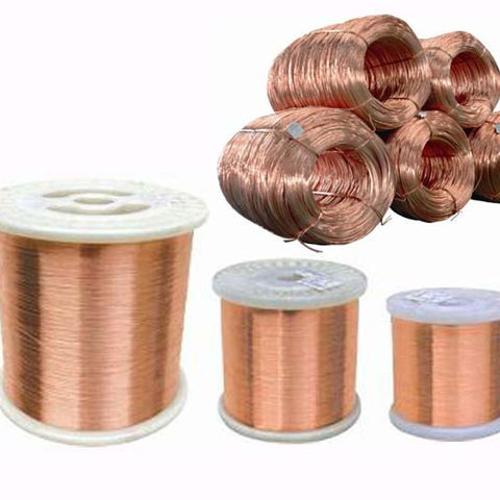

Mn-Cu wire manganin wire electric resistance alloy manganin Wire
| Performance | |
| Constantan 6J40 | |
| New Constantan 6J11 | |
| Manganin 6J12 | |
| Manganin 6J18 | Manganin 6J13 |
| Mn | |
| 1-2 | |
| 10.5-12.5 | |
| 11-13 | |
| 8-10 | 11-13 |
| Ni | |
| 39-41 | |
| -- | |
| 2-3 | |
| -- | 2-5 |
| Cu | |
| rest | |
| rest | |
| rest | |
| rest | rest |
| Other | |
| -- | |
| Al2.5-4.5 Fe1.0-1.6 | |
| -- | |
| Si1-2 | -- |
| Temperature Range for Components | |
| 5-500 | |
| 5-500 | |
| 5-45 | |
| 10-80 | 10-80 |
| Density g/cm3 | |
| 8.88 | |
| 8 | |
| 8.44 | |
| 8.7 | 8.4 |
| Resistivity Ω.m,20 | |
| 0.48±0.03 | |
| 0.49±0.03 | |
| 0.47±0.03 | |
| 0.35±0.05 | 0.44±0.04 |
| Extensibility %φ0.5 | |
| ≥15 | |
| ≥15 | |
| ≥15 | |
| ≥15 | ≥15 |
| Resistance Temperature Quotiety α,10-6/ | |
| -40+40 | |
| -80+80 | |
| -3+20 | |
| -5+10 | 0+40 |
| Thermoelectromotive force to Copper v/(0-100) | |
| 45 | |
| 2 | |
| 1 | |
| 2 | 2 |
